Fig.: OBP60 with more than 33 different display pages

Functions

E-Paper Display (daylight compatible)
Numeric display pages for 1, 2, 3 and 4 values (values freely selectable)
Graphic display pages (fixed values)
Trend indicator for values
Exceedance of limit values acoustically and visually
6 Sensor buttons (suitable for swipe gestures)
Acoustic signal generator (buzzer)
Optical signal transmitter (RGB LED)
LED-Displaybeleuchtung (RGB-LEDs)
NMEA2000 (full duplex, isolated)
NMEA0183 (RX or TX, configurable, isolated)
NMEA2000/NMEA0183 Gateway (bidirektional)
I2C (isolated)
1-Wire (non-isolated)
Voltage output 5V (max. 200mA) for external sensors
USB-C (OTG, Debug, NMEA0183)
Battery monitor (12V voltage measurement)
BMP280 environmental sensor (temperature, air pressure)
GPS receiver (GPS, Glonass, Baidu, internal or external GPS antenna)
WiFi 2.4GHz (HTTP, TCP, UDP)
Bluetooth (currently unused)
Battery deep discharge protection < 9.0V
Low Power Modus

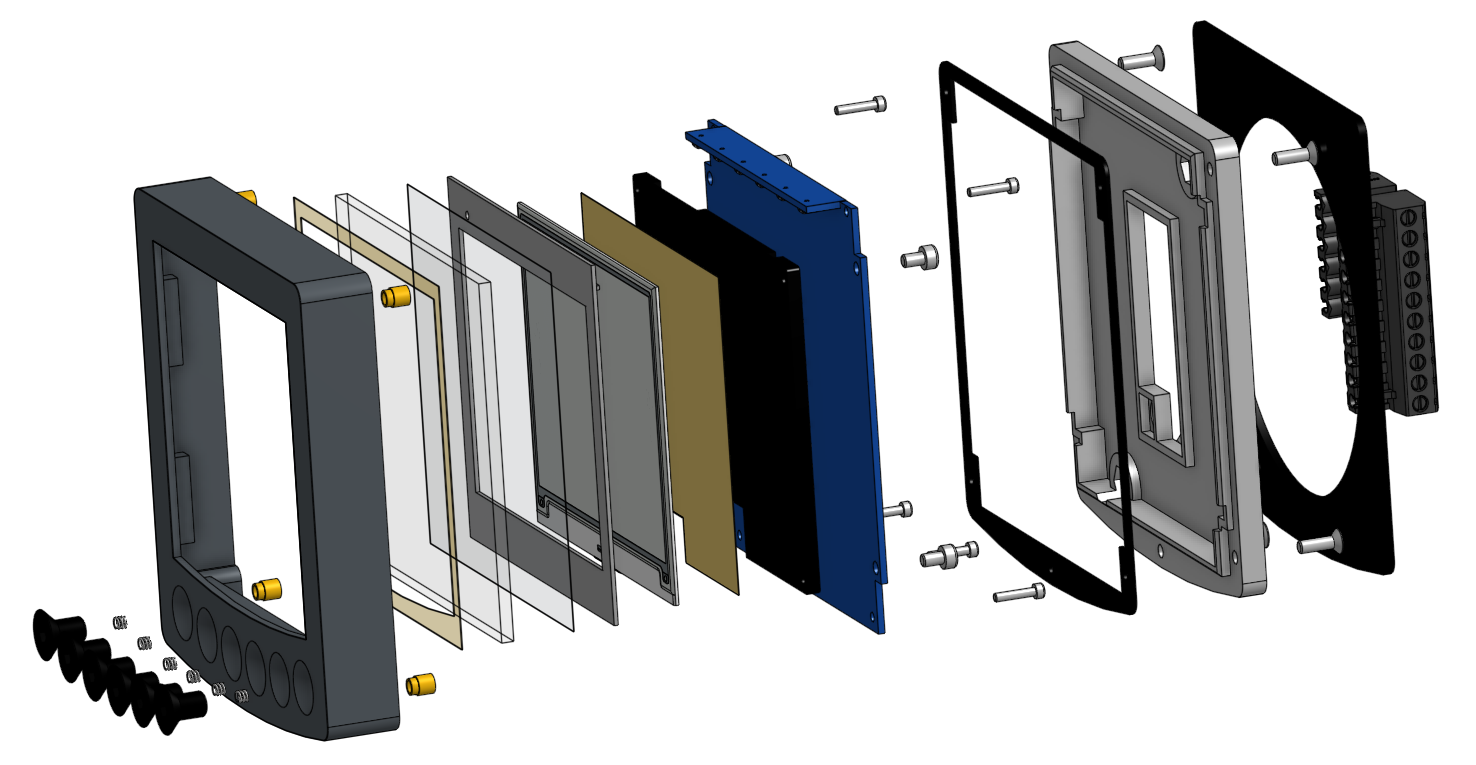

Construction

Specification

Supply voltage	10…28 V
Electricity consumption	0.5…3.5 W, typisch 1 W
Processor	ESP32-S3, Dual Core
Clock Speed	80, 160, 240 MHz
RAM	512 KB
Flash	16 MB
PSRAM	8 MB
Display size	400 X 300 pix, 120 dpi
Refreshrate	1 Hz
Sensor buttons	Capacitive
NMEA0183-Bus	RS485, max. 115.2 kBd, 30 m
NMEA2000-Bus	CAN, 250 kBit/s, 30 m
I2C bus	5V, 100 kBit/s, 10 m
1Wire-Bus	3.3V, 10 m
5V output	200 MA, isolated
ESD protection	8 KV
Protection level	IP68, front
Dimensions	110 X 115 x 30 mm
Weight	280 G

Connection assignment

Circuit diagram

Schaltplan V2.1 [PDF]

Dimensional drawings

Maßbild [PDF]

Usable and convertible telegrams

NMEA0183

AIVDM, AIVDO, DBK, DBS, DBT, DPT, GGA, GLL, GSA, GSV, HDG, HDM, HDT, MTW, MWD, MWV, RMB, RMC, ROT, RSA, VHW, VTG, VWR, XDR, XTE, ZDA

NMEA2000

126992, 127245, 127250, 127251, 127257, 127258, 127488, 127489, 127505, 127508, 128259, 128267, 128275, 129025, 129026, 129029, 129033, 129038, 129039, 129283, 129284, 129539, 129540, 129794, 129809, 129810, 130306, 130310, 130311, 130312, 130313, 130314, 130316

Usable I2C sensors

Environmental sensors

BMP085, BMP180, BMP280, BME280, SHT20, HTU21

Voltage and current sensors

INA226, INA219 (in preparation)

Store sensors**

AS5600, MT6701 (in preparation)

Port expansions

PCF8574 (in preparation)

Real-time watches

DS1388

Usable 1-Wire sensors

Temperature sensors

DS18B20
