Bus systems

The OBP60 supports multiple bus systems. This chapter deals exclusively with networking the components. The necessary software configuration can be found in the following chapter Data exchange.

• NMEA2000 over CAN bus (isolated)

• NMEA0183 via RS485/RS422 bus (isolated)

• I2C bus (isolated)

• 1-Wire bus (not insulated)

• USB-C (non-isolated)

Fig.: Connection assignment of the bus systems

NMEA2000 and NMEA0183 are bus systems used in the marine sector. The I2C bus and the 1-Wire bus originate from the electronics sector. Many inexpensive sensor modules can be integrated via these systems. The respective bus systems are described in more detail below.

NMEA2000

NMEA2000 is a bus system used for data transmission between electronic devices in the maritime industry. NMEA2000 uses CAN for data transmission. Transmission occurs via a central cable to which all devices are connected in parallel. Each device in the NMEA2000 network has a unique device ID to identify and address data sources and data display devices. Data is organized into Parameter Group Numbers (PGNs). PGNs are unique data IDs used to describe specific types of data, such as speed, course, temperature, etc. All devices can send and receive PGNs, and it is also possible to specify which PGNs a particular device should send or receive.

NMEA2000 specification in OBP60

• Differential, bidirectional binary-based data protocol

• Half-duplex with collision detection and avoidance

• Bus structure (isolated)

• Bus terminating on both sides

• Supported protocols

  • CAN (standard, with special data packets)

• Fixed data rate of 250,000 bits/s

• Power supply for sensors and display devices via the bus

• Bus length up to 30 m (spur lines <1.5 m)

• Cable type: 5-pin shielded with 2x2 twisted conductors 0.35 mm²

• Connector type M12 5-pin A-coded

Differential data transmission

Data transmission on the CAN bus is differential. Two signals with opposite polarities are transmitted from the transmitter, which are then combined into a single signal at the receiver by subtracting them. Interference affecting both signal lines equally is eliminated by this subtraction process at the receiver. This ensures robust and interference-resistant signal transmission.

Fig.: Differential data transmission (red CAN-H, blue CAN-L)

The data rate of NMEA2000 is 250 kbps. This was chosen to ensure a sufficiently high transmission speed for a wide range of applications on boats, while simultaneously guaranteeing the most efficient use of the network. A data rate of 250 kbps allows sensor data to be transmitted in real time, which is important for a variety of applications, such as monitoring the vessel’s position, navigation and communication devices, engine systems, and other onboard systems.

Note

SeaTalk NG, SIMnet, Raynet, C-Net 2000, and CANet share some similarities with NMEA 2000. However, they differ in their specific hardware and data telegram implementations. SeaTalk NG and SIMnet are partially compatible with NMEA 2000. This means that some devices designed for SeaTalk NG and SIMnet can also communicate with NMEA 2000 devices, albeit with limitations.

Termination of the bus system

A CAN bus uses 120-ohm termination resistors at both ends of the bus system between the CAN-H and CAN-L lines. These two termination resistors correspond to the line resistance of 120 ohms and prevent signal reflections at the line ends during high data transmission rates. The CAN bus consists of a long bus segment (backbone) with short branch lines less than 1.5 m in length. A star topology of the bus system is not permitted. The two termination resistors must only be installed at the bus end.

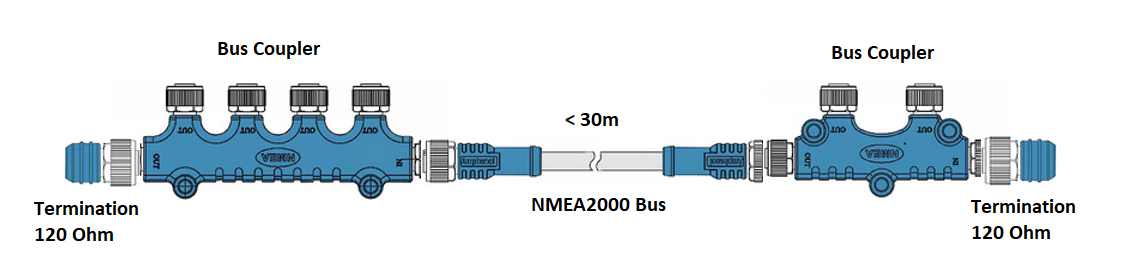

Fig.: CAN bus termination for NMEA2000 via T183

Warning

Some devices have built-in termination resistors that can be switched on or off using appropriate switches. Before adding new devices to your NMEA 2000 network, verify whether integrated termination resistors are used and how they are configured. Incorrectly terminated buses can cause transmission problems that are difficult to diagnose.

Tip

To determine if only two resistors are active on the NMEA bus, you can use a digital voltmeter. When measuring the resistance between the CAN-High and CAN-Low lines on a de-energized NMEA bus, you should measure approximately 60 ohms. If the resistance is significantly less than 60 ohms, there are other devices on the bus system whose termination resistors are incorrectly active. While continuously measuring the resistance, disconnect one device at a time from the NMEA2000 bus until the resistance value increases significantly. The termination resistor of the last device disconnected should be deactivated. If the resistance value is still not 60 ohms, look for other devices with obviously activated termination resistors.

NMEA2000 Cable

Only high-quality, waterproof, and shielded industrial cables should be used as bus cables. Marine retailers offer a wide selection of products with M12 connectors that are very suitable for this purpose.

Tip

In industrial settings, you can find equivalent cables with M12 connectors that are significantly cheaper and can also be used. Make sure to look for connectors with A-coding. The index notch is located between pins 1 and 2.

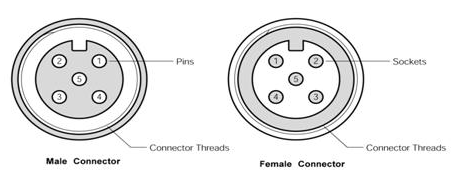

Fig.: Plug and socket (view of contacts)

The pinout and wire colors are shown in the table below. Note that the color coding may differ for industrial cables. In that case, you will need to determine the wire colors for each pin using an ohmmeter.

Pin	Occupancy	Color	Meaning
1	Shielding	Without	Umbrella weave
2	+12V	Rot	Supply voltage
3	GND	Black	Table-Mass
4	CAN-H	White	CAN High-Signal
5	CAN-L	Blue	CAN Low-Signal

Table: NMEA2000 connector pinout

Fig. NMEA2000 bus cable with shielding

Anyone wishing to manufacture their own bus cables should use cables comparable to the type “Lapp Busleitung UNITRONIC 2 x 2 x 0.34 mm²”.

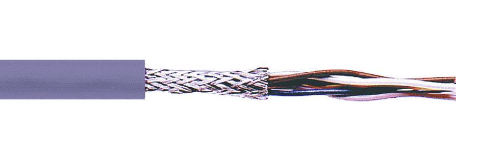

Abb. CAN-Buskabel

This cable consists of two pairs of single wires twisted together and additionally surrounded by an outer braided shield. One twisted pair is used for CAN-H and CAN-L, and the other pair for GND and 12V. The braided shield is connected to GND at only one end of the cable. This ensures optimal results and a safe and durable installation. Cables thinner than 0.34 mm² should not be used if power is to be supplied from the bus. The total length of the bus cable should not exceed 30 m.

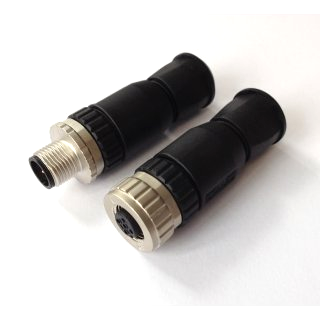

Fig.: NMEA2000 connector for self-assembly

Note

SeaTalk NG and Simnet use proprietary connectors that are not compatible with NMEA2000. However, data exchange between these networks is possible using appropriate converter cables. Generally, mixing different bus technologies should be avoided.

Power supply from the NMEA2000 bus

Low-power NMEA2000 devices, such as sensors, can also be powered directly from the bus system. This eliminates the need for additional power cables. However, it’s crucial to note that the NMEA2000 bus is limited to a maximum power draw of 35W. NMEA2000 devices are marked with load values that indicate the current draw from the bus. The load value is expressed as a multiple of 50 mA. A device with a load value of 3 would therefore require 150 mA at 12V and consume 1.8W of power. The 12V supply voltage is fed into the NMEA2000 bus either via a power supply cable or a device with bus power input, such as a plotter. Ideally, the power supply should be connected to the bus in the middle of the bus to minimize line losses due to resistance.

Note

The OBP60 has a load value of 5 and requires a maximum current of 250 mA. You can power the OBP60 directly from the NMA2000 bus. Under normal operating conditions, the OBP60’s current consumption is approximately 120 mA.

Wiring for NMEA2000

NMEA2000 uses a bus structure. The main bus contains one or more bus coupler units, through which the respective devices are connected. The bus length must not exceed 30 m, and the branch lines to the devices should not be longer than 1.5 m. Termination resistors are located at the ends of the main bus for bus termination. The power supply for the NMEA2000 bus is shown in the lower image via the plotter.

Fig.: NMEA2000 bus system with sensors and display devices

To connect the OBP60 to the NMEA2000 bus, the easiest way is to use an NMEA2000 extension cable. Simply cut it in half and connect the open ends to the screw terminals. It is advisable to crimp ferrules onto the wire ends or tin the copper wires.

Fig.: NMEA2000 connection with power supply via the NMEA2000 bus

A minimal configuration could look like this. Note that the NMEA2000 bus on the right is terminated by the OBP60 by activating the internal bus termination via jumper TN2K. Jumper TN2K is located midway between the two connectors CN1 and CN2.

Note

Connect the shield of the NMEA2000 cable to input Shield. Do not connect the shield to GND, GND2, or GNDS, as this will create ground loops and compromise the insulation. The entire shield of the bus cable must be connected at only one end to input Shield of the NMEA2000 bus on the OBP60. The cable shield must not be connected at any other point.

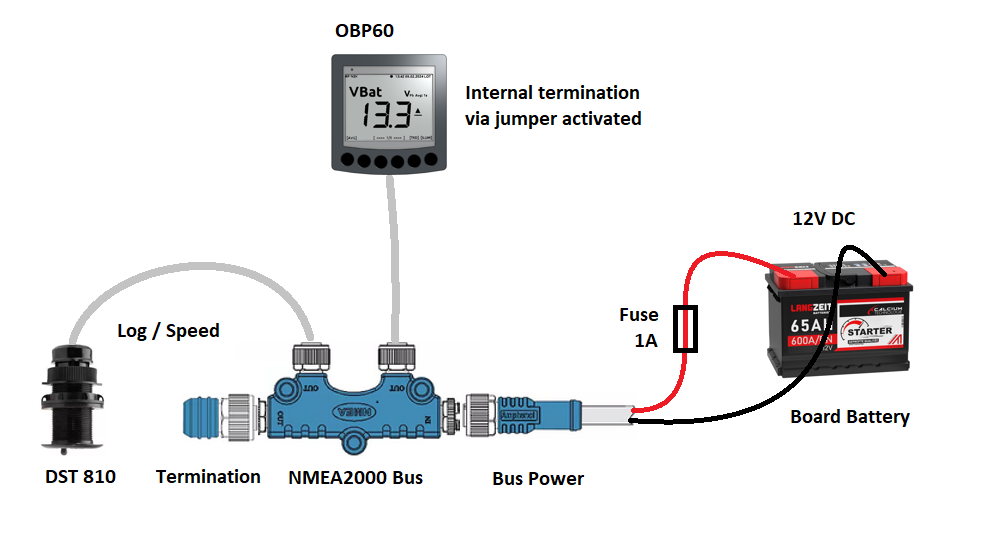

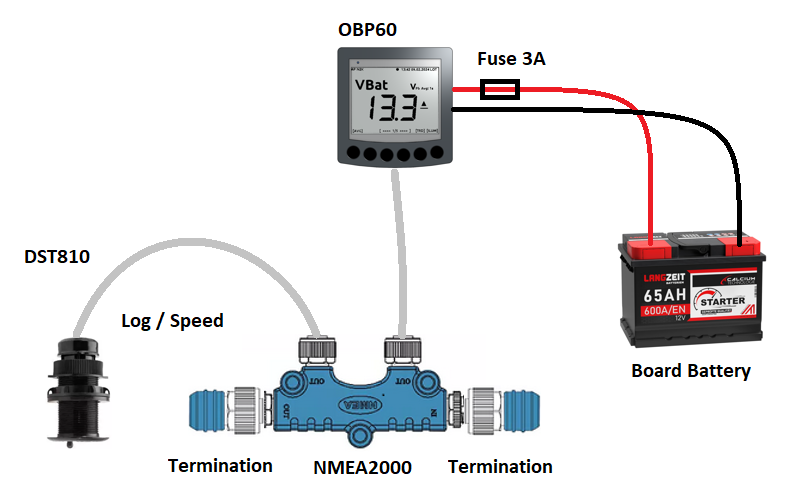

Fig.: NMEA2000 minimal configuration with one sensor

The NMEA2000 bus can also be powered via the OBP60. The power feed into the bus then looks like this:

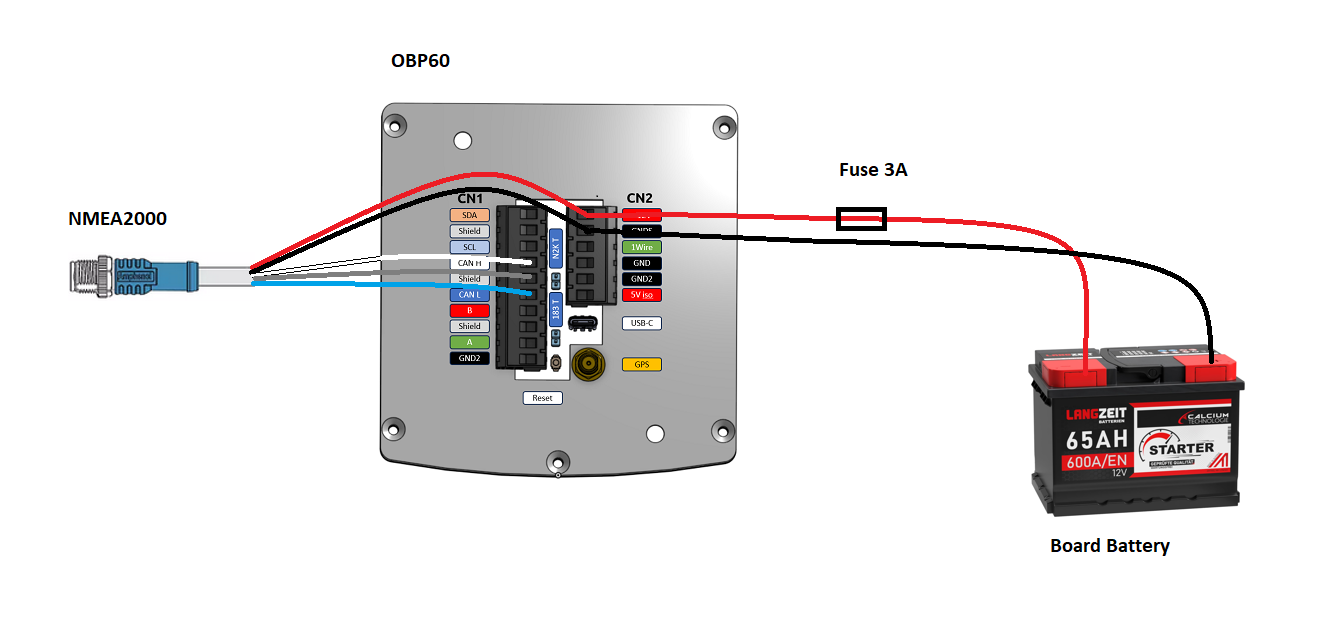

Fig.: NMEA2000 connection with power supply via OBP60

Warning

Note that the NMEA2000 bus must only be powered by one source. Otherwise, malfunctions in the bus system may occur. Ensure that the power supply to the bus is protected by a 3A fuse.

The following image shows a possible application example. Bus termination is deactivated in the OBP60; it is performed at the bus distributor.

Fig.: NMEA2000 minimal configuration with bus input

Compatibility with Simnet and SeaTalk NG

Simnet and SeaTalk GN have limited compatibility with NMEA2000. Both bus systems use their own connector systems and some proprietary NMEA2000 telegrams. Most common NMEA2000 bus telegrams are supported by both systems. Simnet and SeaTalk GN bus systems can be connected to an NMEA2000 bus system using special, simple passive adapter cables. The OBP60 can then process information from Simnet or SeaTalk GN via the CAN bus or via WiFi using the SeaSmart protocol, and also send information to these bus systems. Proprietary telegrams are not supported, but are transmitted and forwarded within the bus system.

NMEA0183

NMEA0183 is a standard for serial data transmission in the maritime industry. It defines a format for transmitting information between navigation devices and other electronic equipment on boats. NMEA0183 is a widely used standard, supported especially by many older devices.

Specification NMEA0183 in OBP60

• Serial, unidirectional data protocol based on ASCII

• Point-to-point connection (isolated)

• Simplex without collision detection and avoidance

• Bus termination at the receiver

• Supported protocols

  • RS422 (Standard)

  • RS485

• Data rate 1,200…460,800 Bd variable

• Power supply for sensors and display devices via 12V vehicle electrical system

• Bus length up to 1000 m (depending on data rate and cable type)

• Cable type not specified

• Connector type not specified

Data transfer

Data transmission in the OBP60 is half-duplex and serial, using two simple cables. This means that you can either send or receive; both simultaneously are not possible. The standard data rate is 4800 baud, which is quite slow by today’s standards, but allows bus lengths of up to 1000 m. The following data rate settings can be used:

• 1.200 Bd

• 2.400 Bd

• 4.800 Bd

• 9.600 Bd

• 14.400 Bd

• 19.200 Bd

• 28.800 Bd

• 38.400 Bd

• 56.600 Bd

• 57.600 Bd

• 115.200 Bd

• 230.400 Bd

• 460.800 Bd

Depending on the data rate and protocol, the permissible cable lengths can vary. These values should be observed in actual operation.

Fig.: Permissible cable lengths for RS422 and RS485

Transmission rate [Bd]	Permissible cable length [m]
4.800	300
9.600	152
19.200	15
57.600	5
115.200	2

Table: Permissible cable lengths for RS232

Data transmission uses differential signals, similar to NMEA2000. This allows common-mode interference to be reliably suppressed over long cable lengths.

Fig.: RS422 transmission model transmitter - receiver

Bus Scheduling

Fig.: Bus termination for NMEA0183

On the receiver side, the NMEA0183 bus is terminated. The OBP60 contains jumper T183 for bus termination between connectors CN1 and CN2. This jumper must be set if the OBP60 is configured as a receiver of NMEA0183 telegrams using Serial Direction Receive (see section Config - Serial Port).

Multiplexer

Overall, NMEA0183 is a useful standard for transmitting navigation data on boats, but it has its limitations and cannot compete with more modern technologies like NMEA2000 in all use cases. For example, to combine data from multiple sources, such as sensors, into a single data stream, multiplexers are necessary in the NMEA0183 world.

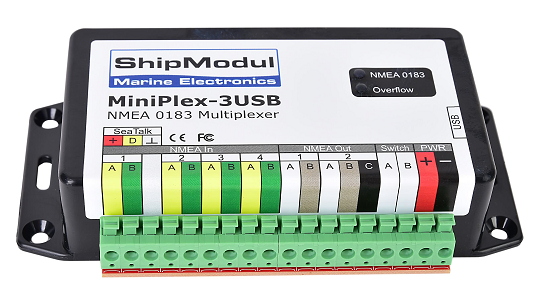

Abb.: NMEA0183 Multiplexer (Ship Modul)

The multiplexer receives various data telegrams on different ports and outputs the combined data stream from multiple sensors on a new data port. This allows multiple sensor signals to be transmitted over a single line to a data terminal such as a plotter or a multifunction display. Many multiplexers also offer the option of suppressing specific data telegrams within the data stream using a filter function. This allows, for example, only the necessary data to be transmitted to an autopilot or prevents ambiguities caused by multiple GPS receivers.

NMEA0183 Telegram Structure

NMEA0183 telegrams are quite simple in structure and are transmitted as ASCII data records. An NMEA0183 telegram consists of the following information.

• Identifier

• Telegram type

• Sensor data

• Unit

• Status

• CRC-Checksumme

Depending on the complexity of a telegram, multiple sensor data points or status information can be transmitted in a single telegram. The following is an example of a telegram from a depth gauge.

DBT - Depth below transducer

$–DBT,a.a,b,c.c,d,e.e,f*hh<CR><LF>

Field number:

• A.a - Depth in feet

• B - f = foot

• C.c - Depth in meters

• D - M = Meter

• E.e - Depth in Fathoms

• F - F = Fathoms

• Hh - Checksumme

Example:

• $IIDBT,12.8,f,39.0,M,21.3,F*20

Anyone who wants to learn more about NMEA0183 telegrams can find detailed information on this Webseite.

Cabling for NMEA0183

The following image shows a configuration in which an NMEA0183 wind sensor is connected to the OBP60. The wind sensor sends the data to the OBP60, which is configured as an NMEA0183 receiver. Bus termination is enabled via jumper T183.

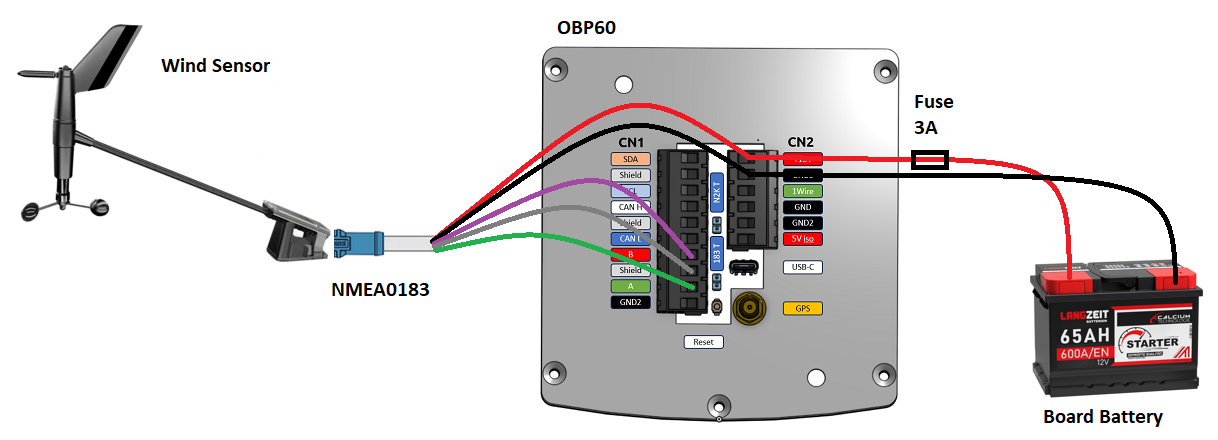

Fig.: NMEA0183 minimum configuration

Hint

Other sensors can be connected to the OBP60 in a similar way. However, it’s important to note that only one device or sensor can be connected to the OBP60 at a time. If multiple devices need to be connected, a multiplexer is required.

Note

When wiring external sensors via NMEA0183, use shielded cables whenever possible and run the shield directly to the sensor. Do not connect the shield at the sensor to GND2, as this will create ground loops. The entire shield of the bus cable must be connected to input Shield of the NMEA0183 bus on the OBP60 at only one end. The shield at the other end of the cable remains open. Other shield inputs must not be used.

Attention

Please note that NMEA0183 data transmissions require the same transmission speed and the same transmission protocol for both the sender and receiver. Otherwise, data transmission will not be possible. The NMEA0183 interface in the OBP60 does not support the RS232 protocol.

Most multiplexers have multiple NMEA0183 inputs and at least one NMEA0183 output. When using a multiplexer, all sensors are connected to the multiplexer’s NMEA0183 inputs, and the NMEA0183 output is connected to the OBP60. The multiplexer then combines the data streams from all sensors into a single data stream at the output, as described. Filters at the data output can be used to limit the amount of data to only the most important information. In this example, the OBP60 is configured as a receiver. Bus system termination is disabled.

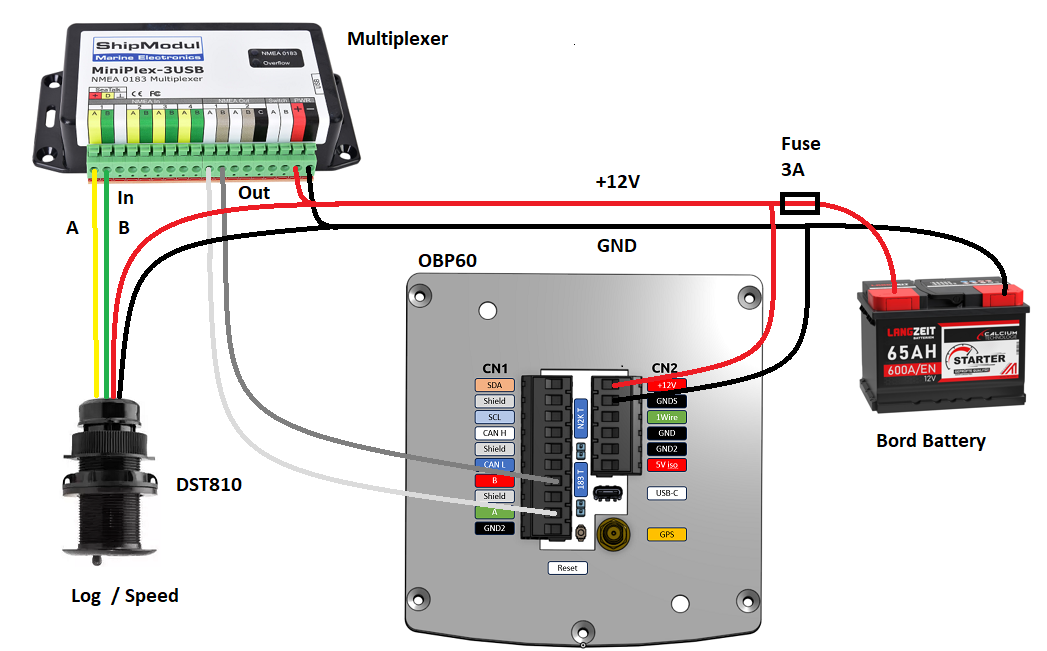

Fig.: NMEA0183 connection to a multiplexer

Hint

All NMEA0183 data is automatically converted to NMEA2000 by the OBP60 gateway. This conversion is unidirectional, only in the direction of NMEA2000. No data is converted in the reverse direction to NMEA0183, as the OBP60’s NMEA0183 port operates in receive mode in the configuration shown.

I2C

The I2C bus is used to connect electronic components. It is primarily used in electronics to connect various components on a circuit board in a cost-effective manner. The connection is made via a two-wire line and operates with signal levels of 5.0V. It includes the clock signal SCL and the data signal SDA. Communication operates as a master-slave system. The master controls the slaves via a unique address and can exchange data with them.

I2C specification in the OBP60

• Serial, bidirectional, synchronous binary-based data protocol

• Bus structure (isolated)

• Half-duplex with collision detection and avoidance

• Internal bus termination via pull-up resistors

• Supported protocols

  • I2C, TTL 5.0V

• Data rate 100,000 kbit/s variable

• Power supply for sensors and display devices via separate lines

• Bus length up to 10 m (depending on data rate and cable type)

• Cable type not specified

• Connector type not specified

The OBP60’s I2C bus is isolated from the outside world and uses 5.0V TTL signal levels. Clock and data outputs are routed via line drivers capable of operating long cables with high capacitance. This prevents interference within the bus system from negatively impacting the OBP60’s operational reliability. The I2C bus has five lines for connecting external devices.

Exit	Meaning
5Visor	Supply voltage
GND2	Mass I2C
Shield	I2C shielding
SCL	Bus-Clock
SDA	Data line

The following image shows an I2C bus setup with three I2C sensors. All sensors are connected to the I2C input of the OBP60 using shielded cables. The external sensors are powered directly by the OBP60 via its integrated, isolating DC/DC converter (5Viso, GND2). The power output can supply up to 200 mA at 5Viso and thus power multiple sensors.

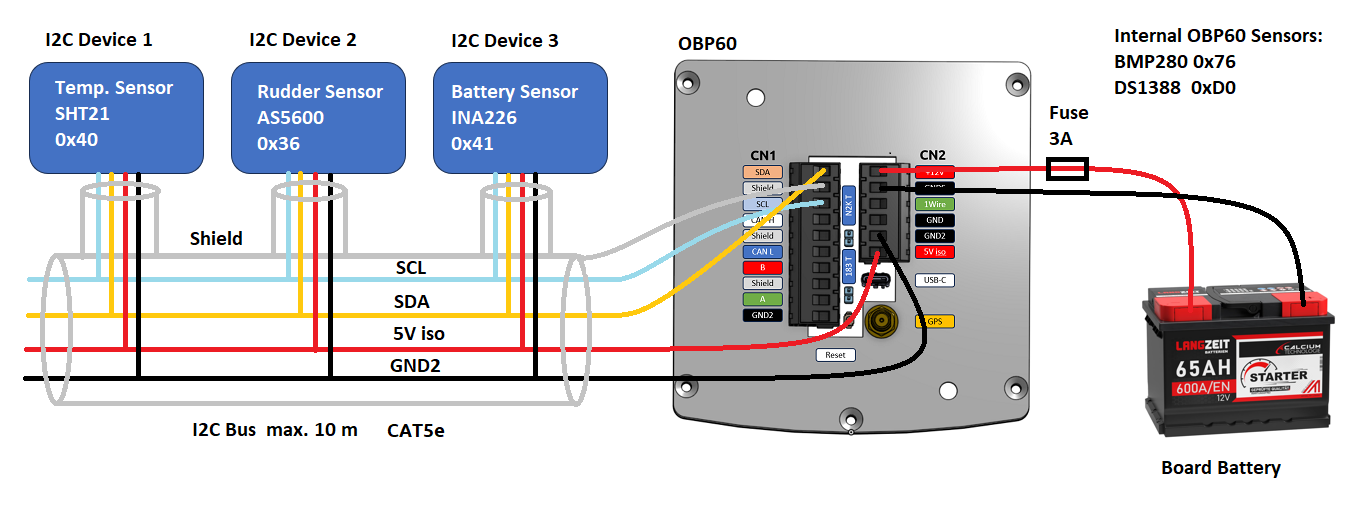

Fig.: I2C connection of external sensors

Note

For wiring external sensors, use shielded cables whenever possible and run the shield directly to the sensor. Do not connect the sensor cable shield to GND2, as this will create ground loops. The entire shield of the bus cable must be connected to input Shield of the I2C bus on the OBP60 at only one end. The shield at the other end of the cable remains open. Do not use any other shield inputs. Keep spur lines from the bus to the sensors as short as possible.

Attention

Some I2C modules can be powered with 5V but use 3.3V TTL signals for SCL and SDA. In this case, you need a level shifter to convert the SCL and SDA signals to 5V TTL signals. Failure to do so can damage the I2C sensor or module. The same applies to modules that only require 3.3V. In this case, in addition to the level shifter, you will also need a DC/DC converter to reduce the supply voltage. Most I2C modules that can be used with an Arduino Uno can also be used with the OBP60. These modules are suitable for 5V TTL signals.

Caution

If you intend to use external sensors or modules on the I2C bus, check whether an address conflict could occur between the sensors or modules. Ensure that I2C addresses are not assigned multiple times, as this will lead to communication problems on the I2C bus. In particular, when using multiple identical modules, the I2C addresses must be set differently. This is not possible with some I2C modules. In such cases, you can only use one I2C module of the respective type on the bus. The OBP60 already occupies the following addresses, which must not be used by sensors: 0x76 and 0x68.

Caution

External I2C sensors that are not connected but are enabled in the configuration will impair the responsiveness of the OBP60. These sensors cannot respond to the system, resulting in a software timeout. In such a case, disable the sensors in the configuration.

Danger

Determine the power requirements of your external sensors and ensure that the power supply 5Viso is not overloaded or short-circuited. The maximum permissible current is 200 mA. Otherwise, all isolated bus systems such as NMEA2000, NMEA0183, and I2C will fail, as they are powered by the same source. This will result in a loss of communication on all of the aforementioned bus systems, which can have serious consequences for your boat’s navigation. Do not connect GND2 to GND or GNDS, as this will eliminate the isolation and increase susceptibility to interference.

1Wire

The 1-Wire bus is a single-wire bus for serial data transmission in electronic circuits. In addition to the data line, a ground line is required for potential reference. Transmission is bidirectional and asynchronous. The 1-Wire bus is often used for simple sensors that transmit only small amounts of data, such as the DS18B20 temperature sensors. On the OBP60, the 1-Wire bus is accessible at terminal CN2.

1-Wire Specification

• Serial, bidirectional asynchronous binary-based data protocol

• Bus structure (not isolated)

• Half-duplex with collision detection and avoidance

• Bus termination via pull-up resistor at the output

• Supported protocols

  • 1Wire, TTL 3.3V

• Data rate 9600 kBit/s (with parasitic power supply via data line)

• Power supply to sensors via data line

• Bus length up to 10 m (depending on data rate and power supply)

• Cable type not specified

• Connector type specified for some applications

• Maximum 8 DS18B20 sensors can be used.

The 1-Wire bus offers a simple and cost-effective way to integrate temperature sensors. Only 3 wires are required at the OBP60 for connection.

Exit	Meaning
1Wire	Data line
GND	Masse 1Wire
GND2	Shielding

The temperature sensors are powered parasitically via the data line. Internally, each sensor contains a capacitor that stores a certain amount of energy for transmission when the data level is at 3.3V. The sensors are addressed via unique addresses and can exchange data with the OBP60. With this parasitic power supply, the data rate is limited to a maximum of 9600 kbit/s. The sensors can only be queried a few times per minute, as they need to accumulate energy over a longer period via the data line. Only one sensor is read per second. This process is then repeated for all subsequent sensors. Therefore, 1-Wire temperature sensors are only suitable for processing non-critical temperature values.

Below is an example application for 1-Wire temperature sensors.

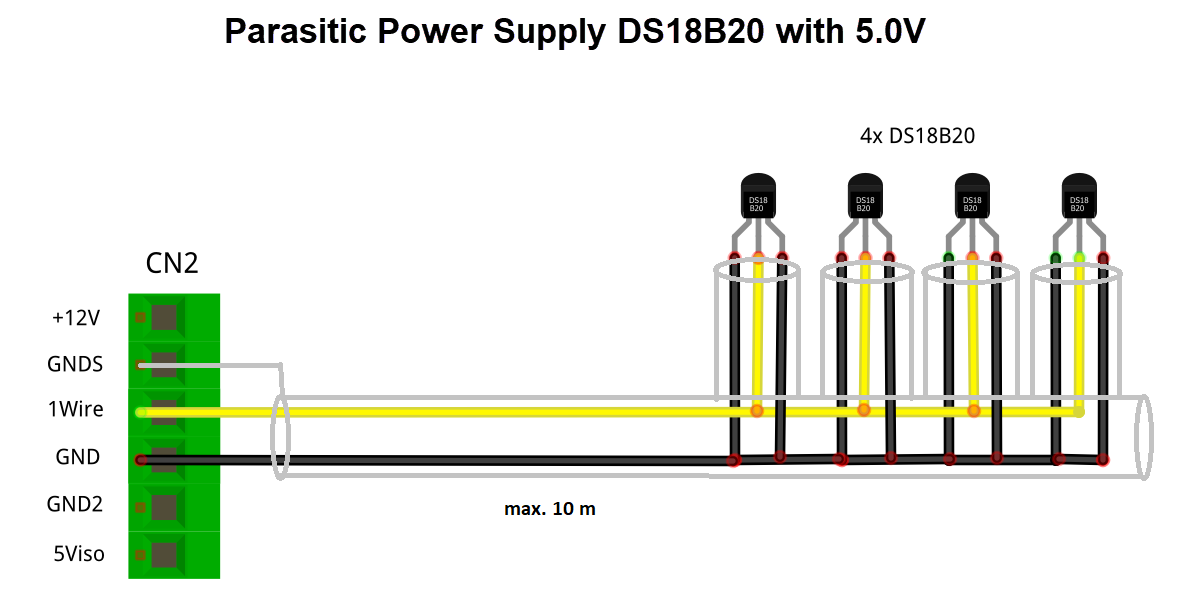

Fig.: 1-Wire connection of external temperature sensors (parasitically powered)

The DS18B20 temperature sensors are to be connected as follows.

Exit	Temperature sensor
1Wire	Yellow, data line
GND	Black + red
GNDS	Screen

Note

For wiring external temperature sensors, use shielded cables whenever possible and run the shield directly to the sensor. Do not connect the sensor cable shield to GND, as this will create ground loops. The entire shield of the bus cable must be connected to input GNDS of the 1-Wire bus on the OBP60 at only one end. The shield at the other end of the cable remains open. Other shield inputs must not be used. Keep spur lines from the bus to the sensors as short as possible. The maximum number of sensors on the 1-Wire bus is limited to 8. The read time of a sensor depends on the number (N) of sensors on the bus. The read time T can be calculated using the following formula: T[s] = N * 1s.

Hint

If possible, use temperature sensors on the I2C bus instead of the 1-Wire bus. This increases the operational reliability of the overall system, as the I2C bus is isolated from the outside world.

Hint

Counterfeit DS18B20 temperature sensors are circulating online, but these do not support a parasitic power supply. If you cannot establish communication with the OBP60, try other sensors. If that also fails, use a standard power supply for the temperature sensors. Almost all sensors should work with this type of power supply.

Fig.: 1-Wire connection of external temperature sensors (directly powered)

Caution

The 1-Wire bus is not isolated from the OBP60’s internal circuitry. If installed improperly, this increases the risk of interference coupled into the bus lines, which can impair the OBP60’s function and stability. Therefore, keep the bus length as short as possible. In the worst case, this can lead to the complete failure of the OBP60, with serious consequences for your boat’s navigation capabilities.

Danger

Under no circumstances should a voltage of 12V be applied to the output 1Wire. This will immediately damage or even destroy the OBP60.

USB

The USB-C interface on the OBP60 is used for flashing firmware and debugging. The USB interface is implemented as a serial interface. Furthermore, bidirectional, full-duplex NMEA0183 communication can be established with other devices such as a laptop, PC, or marine control server.

USB Specification in the OBP60

• Serial, bidirectional asynchronous binary-based data protocol

• Point to point (not isolated)

• USB-OTG (serielles Device)

• Full duplex

• Bus termination via pull-up resistor in the ESP32

• Supported protocols

  • USB 1.1, TTL 3.3V

• Data rate 1 MBit/s

• The OBP60 can be powered via USB.

• Powering external devices from the OBP60 is not possible

• Bus length up to 3 m

• Cable type: shielded

• Connector type: USB-C

Note

For Linux and Windows 10/11, the necessary USB drivers are integrated into the operating system. For older Windows 7/8 versions, you need zusätzliche Treiber to use the USB interface.

Power supply

The OBP60 can also be powered via USB-C. This is useful, for example, when developing software and using the device at your desk. The power supply must be able to provide up to 1 A at 5.1 V, such as a Raspberry Pi power supply. The USB-C interface has reverse current protection, so no current can flow out of the OBP60. The OBP60 can also be powered simultaneously with 12 V and 5 V via USB-C.

Hint

The OBP60 is always powered via 12V from the boat’s electrical system. Powering it solely via USB-C is not recommended, as the connection is not secured against accidental disconnection. Cable lengths greater than 1.5 m should only be used for data transfer and not for power supply, as the voltage drop across the cables is too high. The maximum cable length is 3 m. For longer distances, you must use active USB repeater cables, which boost the signal levels.

Fig.: Active USB extension cable for 5 m

Danger

In some situations, impermissible equalizing currents can flow through the uninsulated USB-C interface and potentially damage the OBP60. This occurs, for example, when chargers are connected to 230V shore power, charging the onboard battery, and simultaneously a laptop with a 230V power supply is connected to the OBP60 via USB-C. If you intend to use the USB-C connection permanently for communication on board, you should use a USB isolator to prevent damage. These problems do not occur when the laptop is powered solely by its built-in battery.

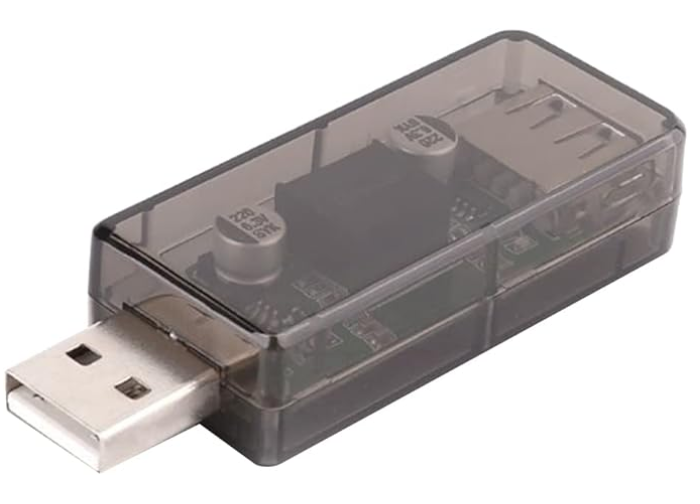

Abb.: USB-Isolator

However, USB isolators have the disadvantage that they can only supply a very low current of approximately 150 mA to their insulated side towards the OBP60. This limits the power supply to the OBP60, which can lead to malfunctions. Depending on the requirements, the OBP60 may then need to be additionally supplied with 12V via connector CN2, as described.

Attention

When the OBP60 is powered via USB, it may occasionally reboot unexpectedly depending on the power consumption. This is often due to insufficient power supply to the USB port or unsuitable or excessively long USB cables. Either the output voltage is not exactly 5V or the current is insufficient. To avoid such problems, use the 12V power supply at terminal CN2 or a separate 5.2V/2A power adapter.

Communication

The USB-C interface can be used for full-duplex NMEA0183 communication with other devices. The following usage scenarios are conceivable:

• Communication with a Marine Control Server

• Data provider for an Android car radio as a plotter

• Communication with a laptop or PC for software development, diagnostics and firmware flashing

• Diagnosis of bus communication with external software such as the Actisense Reader

• Feeding simulation data into the bus systems using the NMEA-Simulator
