Advanced sensor technology

The extended sensor options refer to sensors that are not connected to the NMEA0183 or NMEA2000 buses. Additionally, inexpensive sensors can be connected to the I2C and 1-Wire buses. Note the different signal levels for the I2C and 1-Wire buses. Modules for the I2C bus must be selected to operate at 5.0V TTL levels. Not all modules support these levels.

Type

Bus

Tension

Isolation

OBP60

I2C

5.0V TTL

And

OBP60

1W

3.3V TTL

No

The table below lists some sensors that can be used with the OBP60.

Warning

The sensor modules are designed for specific voltage ranges. Ensure you use the correct sensors. Using 3.3V modules in 5V systems can damage them. In this case, level converters are necessary. Most 5V modules can also be used in 3.3V systems if operated at 3.3V.

Note

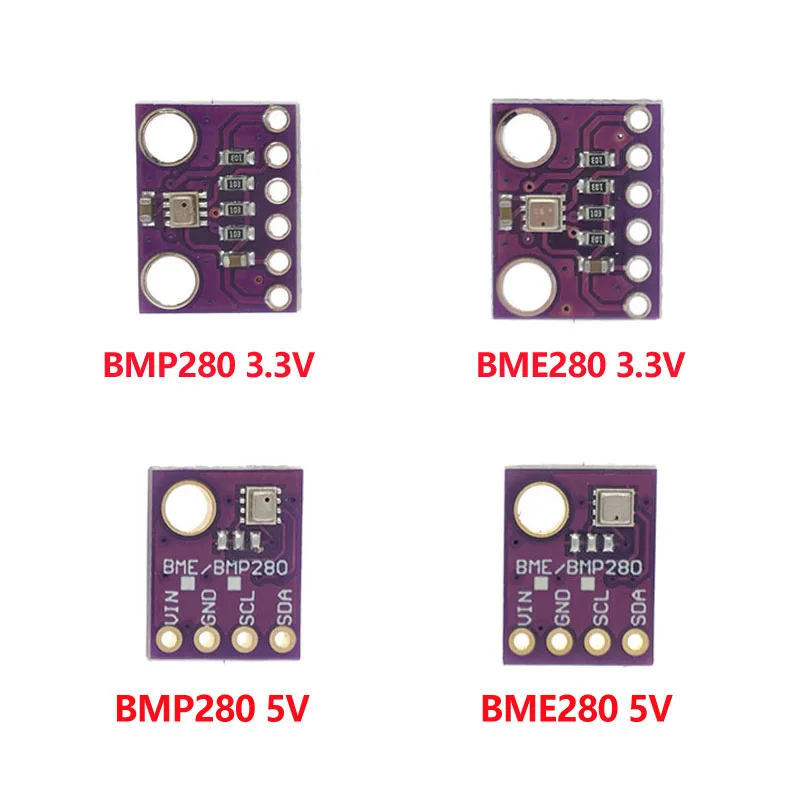

When purchasing BMP280 and BME280 modules, please note that there are different types that look similar but behave differently. You can identify the types by the package size and the shape of the chip.

../_images/BMP280_BME280_5V_3.3V.png

Fig.: Versions BMP280/BME280 for 3.3V and 5V

Type

Bus

Sensor


3.3V

5V

Used pins

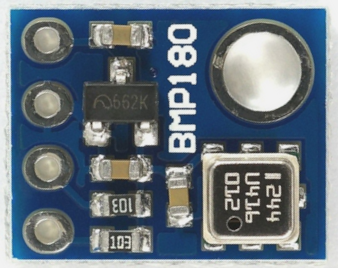

BMP085

I2C

T, P

 ../_images/Modul_BMP085.png

X

Vin, SCL, SDA, GND

BMP180

I2C

T, P

 ../_images/Modul_BMP085.png

X

Vin, SCL, SDA, GND

BMP280

I2C

T, P

 ../_images/Modul_BMP280_1.png

X

X

Vin, SCL, SDA, GND

BME280

I2C

T, P, H

 ../_images/Modul_BME280_1.png

X

X

Vin, SCL, SDA, GND

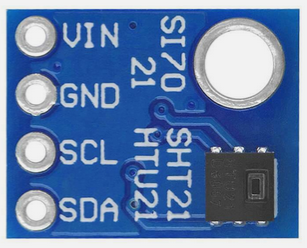

SHT21

I2C

T, H

 ../_images/Modul_SHT21.png

X

X

Lead SCL, SDA, GND

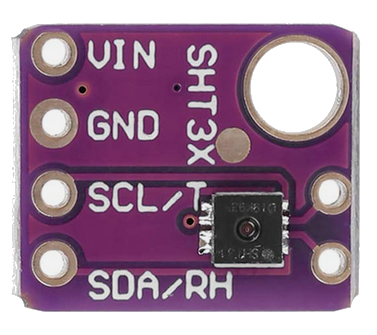

SHT31

I2C

T, H

 ../_images/Modul_SHT31.png

X

Vin, SCL, SDA, GND

HTU21

I2C

T, H

 ../_images/Modul_HTU21.png

X

X

Vin, SCL, SDA, GND

BMP280

I2C

T, P

 ../_images/Modul_BMP280_2.png

X

Vin, SCL, SDA, GND

BME280

I2C

T, P, H

 ../_images/Modul_BME280_2.png

X

Vin, SCL, SDA, GND

AS5600

I2C

R

 ../_images/Modul_AS5600.png

X

X

VCC, SCL, SDA, GND

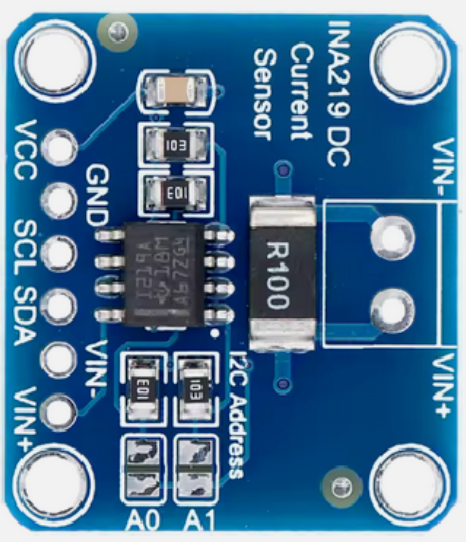

INA219

I2C

In, I

 ../_images/Modul_INA219_2.png

X

X

VCC, SCL, SDA, GND

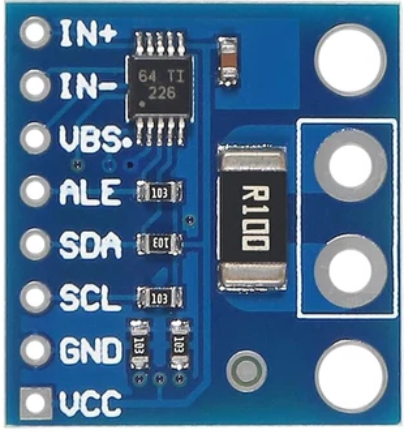

INA226

I2C

U, I, W

 ../_images/Modul_INA226_1.png

X

X

VCC, SCL, SDA, GND

INA226

I2C

U, I, W

 ../_images/Modul_INA226_2.png

X

X

VCC, SCL, SDA, GND

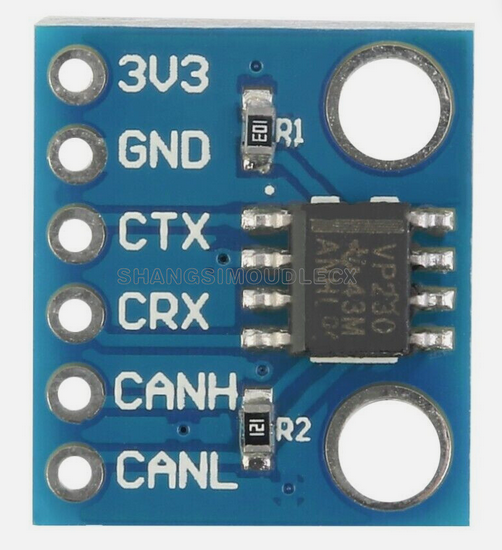

SN65H230

TTL

CAN

 ../_images/Modul_CAN_2.png

X

3.3, CRX, CTX, GND

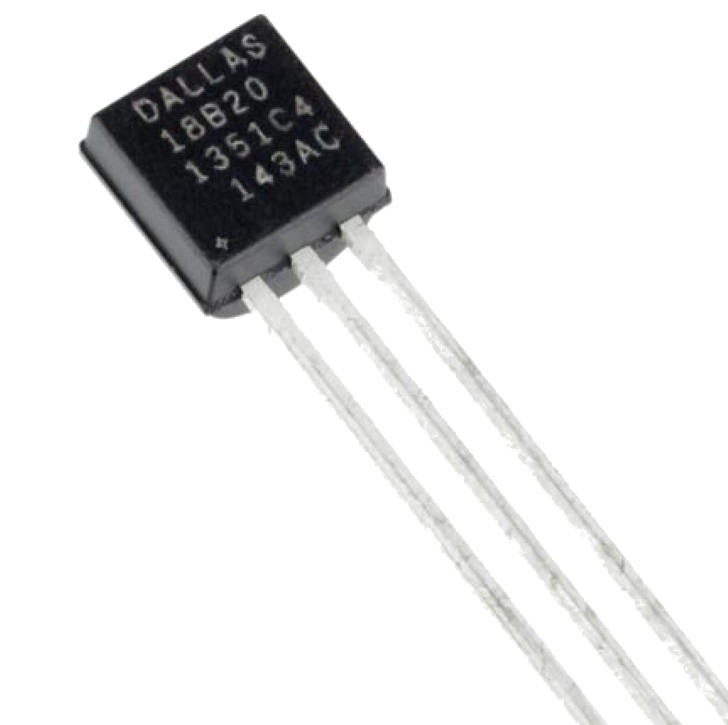

DS18B20

1W

T

 ../_images/Modul_DS18B20.png

X

Wine, Data, GND

  • T - Air temperature

  • P - Air pressure

  • H - Relative humidity

  • R - Rotation 0…360°

  • U-voltage

  • I - Strom

  • W - Power
